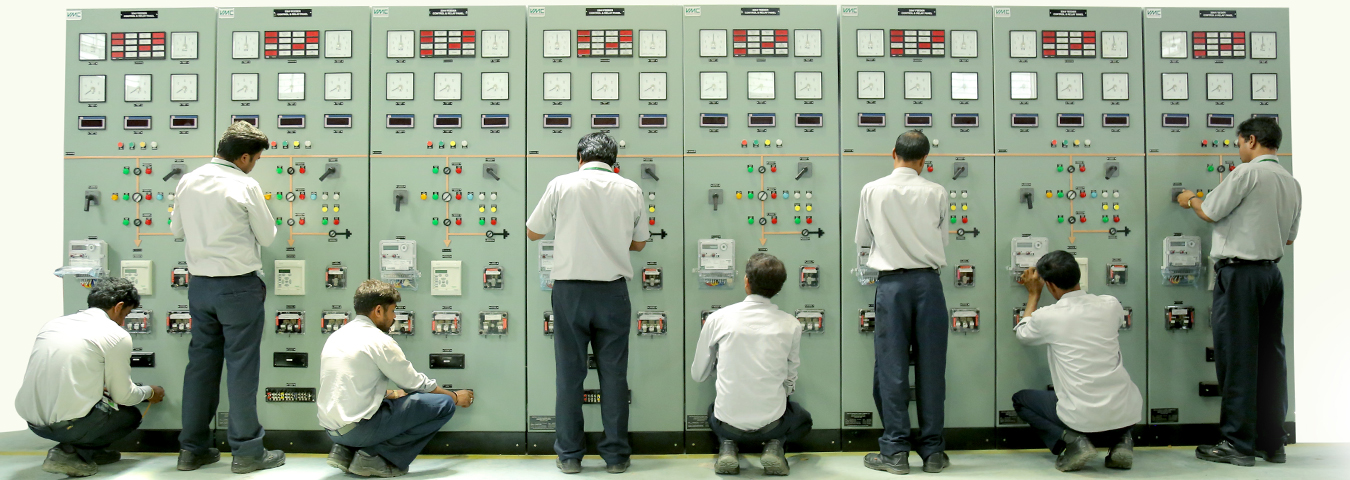

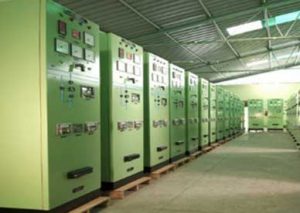

A control & relay panel is designed to provide to control the associated line or transformer through outdoor switchgear at various 11KV and 33KV zonal substations. The control & Relay panels are complete in themselves with all main and auxiliary relays, annunciation relay, fuses, links, switches, wiring, labels, terminal blocks, earthing terminals, base frame, foundation bolts, illumination, cable glands etc. These panels are used for the control & monitoring of electrical equipments such as transformers, generators and circuit breakers. Indoor Control panel for Outdoor VCB includes IDMT Numerical relay, Master Trip Relay, Trip circuit Supervision Relay, Indications & meters etc. These control & Relays panels are available in various combinations as single circuit or multi-circuit depending upon the customer requirements.
Application
- Food and beverage
- Water and wastewater
- Pharmaceuticals
- Chemical and Fertilizers
- Oil and Gas
- Pulp and paper
- Mining/metal/meniral/cement
- Power Generation
- Petroleum Refining
- Sub-Stations
Salient Features
- Spacious Arrangement are Made for Cable entry/termination
- Panel Construction Facilitates Modification & Extension whenever required
- Sleek & Excellent Aesthetics
- Extensible possible on Both Side whenever required
- Tilted Mounting of Terminal Blocks for Ease in Cable/Wire Entry/Terminations
- Accurate Compartmentalized Construction
- Panels are made from High Quality cold rolled close anneal Sheet Metal
- Tampered Transparent Glasses on the Front Door for Easy Viewing
- Front Door with provision for Housing of Relevant Drawings
- Indicators for Alarm / Emergency Attention Mounted on the Front
- Control Cable Entry from Bottom or as desired
- Earthing Bus of Size & Material as per requirement or approval
- Degree of protection: IP 51 or higher as per need
- Reference standard IS 8623 / IEC 60439-1
